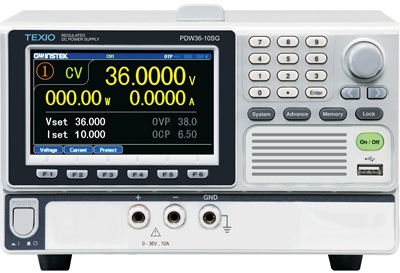

Multifunctional DC regulated power supply

PDW Series

On sale

The PDW series is a dropper-type, low-noise, low-ripple, multi-output, high-resolution DC stabilized power supply. All models are equipped with an electronic load function (CH1 and CH2, CH1 model only CH1), allowing power supply and discharge operations with one unit. It is designed to support a variety of tests with its rich functionality, including battery charge/discharge tests and various standard communication interfaces and sequences.The PDW series is a dropper-type, low-noise, low-ripple, multi-output, high-resolution DC stabilized power supply. All models are equipped with an electronic load function (CH1 and CH2, CH1 model only CH1), allowing power supply and discharge operations with one unit. It is designed to support a variety of tests with its rich functionality, including battery charge/discharge tests and various standard communication interfaces and sequences.

Specification

● High resolution: Setting 1mV/0.1mA, Reading 0.1mV/0.1mA
● Equipped with electronic load function (CH1, CH2 / CC, CV, CR mode)
● Low noise/low ripple: ≦350μVrms/≦2mArms (for PDW32-3DG)
● Series/parallel tracking function (CH1-CH2)
● Output delay/output monitoring/output record function
● Protection function: OVP/OCP/OTP/OPP (when loading)
● Sequence function (CH1/CH2)
● Internal memory function (panel settings/sequence/output delay/output record)
● Power output from USB power supply port (3CH model)
● Remote sensing function (1CH model, 3CH model except PDW32-3TG)
● 4.3 inch color TFT LCD
● Standard interface: USB, RS-232C, GP-IB, LAN, external I/O
● High resolution: Setting 1mV/0.1mA, Reading 0.1mV/0.1mA● High resolution: Setting 1mV/0.1mA, Reading 0.1mV/0.1mA
● Equipped with electronic load function (CH1, CH2 / CC, CV, CR mode)
● Low noise/low ripple: ≦350μVrms/≦2mArms (for PDW32-3DG)
● Series/parallel tracking function (CH1-CH2)
● Output delay/output monitoring/output record function
● Protection function: OVP/OCP/OTP/OPP (when loading)
● Sequence function (CH1/CH2)
● Internal memory function (panel settings/sequence/output delay/output record)
● Power output from USB power supply port (3CH model)
● Remote sensing function (1CH model, 3CH model except PDW32-3TG)
● 4.3 inch color TFT LCD
● Standard interface: USB, RS-232C, GP-IB, LAN, external I/O
● High resolution: Setting 1mV/0.1mA, Reading 0.1mV/0.1mA

Lineup

Related Accessories

Type name Content
GTL-246 USB2.0 Type A-Type B cable
CB-2420P GP-IB Cable (2m)
GTL-232 Null Modem Cable for COM port ,D-sub9 to D-sub 9

Download

Content Download File and Related Links
 Catalog PDW Series Catalog
 Manual PDW Series Instruction manual
 Software USB Driver & Sample for PDW Series
USB Driver, Sample Application(VBA, VB.net, VC#)
 Driver PDW Series Labview Driver
LabVIEW 2012 Driver for PDW Series.
